High Speed X-ray Camera
High Speed XRC

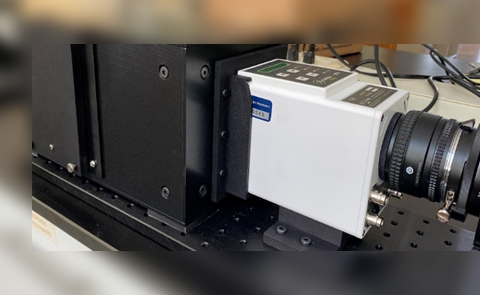

RMD has developed an advanced high frame rate, large-area, modular X-ray detector capable of acquiring high-speed, high-resolution, high-contrast images of dynamic phenomena, for use in hypervelocity projectile tracking, impact analysis, and other important applications such as high-speed medical X-ray CT and time-resolved X-ray analysis.
The detector configuration is designed for various demanding applications, including time-resolved X-ray diffraction analysis. The design’s flexibility allows RMD to re-configure the device for high-energy X-ray imaging by changing the scintillation screen to one most suitable for a client’s specific purpose. The design can be modified to satisfy all training and safety requirements. The overall capabilities of the cameras are unique, unavailable collectively for any other existing detector.
- CMOS Sensor: 1024 x 1024 pixels
- Pixel Size: 17 μm
- Dark Noise: 33 e- rms @ 21°C
- Full Well Capacity: 42,000 e-, (excluding system or II noise)
- Image Intensifier: MCP 125
- Fiberoptic Taper Ratio: 3.78 : 1
- Effective Image Area: 7 cm x 7 cm
- Full Frame Rate: 2,000 fps @ 1024 x 1024 pixels
- Max. Frame Rate: 120,000 fps @ 128 x 32 pixels
- Scintillation Screen: Customized HSS1* (or co-doped CsI:Tl,Eu/Sm)
- High frame rate operation (2,000 to 120,000 frames/second)Continuous data acquisition
- High pixel resolution (1024 x 1024)
- Large active imaging area (7 x 7 cm2)
- Unique fast, bright, and high-resolution scintillator sensors.
- Wide energy range of operation (8 kVp to 480 kVp).
- Electronic shuttering for nanosecond-range timing and integration.
- Abuttable modularity for even larger active areas.
